23.6" round touchscreen AIO display industrial touch panel PC for Various Industrial Applications

Name: 236quot round touchscreen AIO display industrial touch panel PC for Various Industrial Applications
Brand: ITD/OEM
Price: 1 USD

China 23.6" round touchscreen AIO display industrial touch panel PC for Various Industrial Applications wholesale

Brand Name : ITD/OEM

Model Number : ITD23PPCT5Rxx

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 7-10 Business Days

Packaging Details : 1-5pcs/CTN, Safe, Firm, suitable for international shipping

Cell Type : TFT-LCD

Size : 23.6 inch

Active Area : 1280×1280

Brightness : 700 nits

Power input : AC100~240V input

CPU ARM solution : ARM Quad Core Cortex-A17 RK3288

X86 solution : Intel J1900/J4125/J6412,i3/i5/i7

Contact Now

23.6" round touchscreen AIO display industrial touch panel PC for Various Industrial Applications

ITD's 23.6" round touchscreen AIO display is a cutting-edge solution designed for unique and innovative applications. With its sleek circular design, high-resolution display, and responsive PCAP touch technology, this all-in-one system delivers an engaging and modern user experience. Engineered for durability and seamless integration, it is ideal for gaming, retail, kiosks, and industrial automation. Whether enhancing interactive signage or creating futuristic control interfaces, ITD’s 23.6" round touchscreen display offers versatility, reliability, and a striking visual impact.

Panel	Cell Type/Glass Surface	TFT-LCD
	Size/ Aspect Ratio	23.6”
	Active Area/ Pixel Pitch	599.424(W)×599.424(H) mm/0.4683 × 0.4683mm
	Native Resolution/ Colors	1280×1280/16.7M
	Brightness/ Contrast	700cd/㎡(1500 cd/㎡optional)/1000:1
	Response Time/ Viewing Angle(Typical)	14ms/89/89/89/89
	Light Source	LED Backlight with 50000Hours’Lifetime

SYSTEM

Item	ARM Solution	X86 Solution 1	X86 Solution 2
CPU	ARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568//RK3576/RK3588 optional)	Intel® Celeron J1900/J4125/J6412 2.0GHz	Intel® Core i3/i5/i7 (4^th~13^th Generation or newer optional)
Chipset	Rockchip	Intel Bay Trail SoC	Intel SoC Chipset
Memory	2GB; 4GB/8GB Optional	Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412)	2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB DDR4 SODIMM ×2 (8th~12th gen.)
Storage	8GB; 16GB/32GB/64GB/128G Optional	1×mSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD	1×mSATA, 1×SATA 1×M.2 Default to 64GB SSD
Graphics	Supports max. 4K resolution	Intel HD/UHD Graphics (By CPU)	Intel HD/UHD Graphics (By CPU)
I/O	1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1 × COM(Optional); 1 × TF Card Support 8~128GB	1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 2×COM port max. 6; 1×Realtek ALC662 Line-Out /MIC IN	1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 2×COM max. 6; 1×Realtek ALC662 Line-Out /MIC IN
LAN	1×10/100/1000Mbps Ethernet	1× 10/100/1000Mbps Ethernet( Dual LAN optional)	1×10/100/1000Mbps Ethernet( Dual LAN optional)
OS	Android 7.1/8/10/11/12, etc. Linux Ubuntu(optional)	Windows 7/10, Linux Windows 11(available for J4125/J6412)	Windows 7/10, Linux Windows 11(available for 7^th gen. or above)

GENERAL

Power	Input Voltage	AC100~240V input
Power	Operation/Power Saving	40~70W
Environment Considerations	Operating Temperature	-20~60℃
	Storage Temperature	-20~70℃
	Relative Humidity	10%~80%(Non-Condensing)

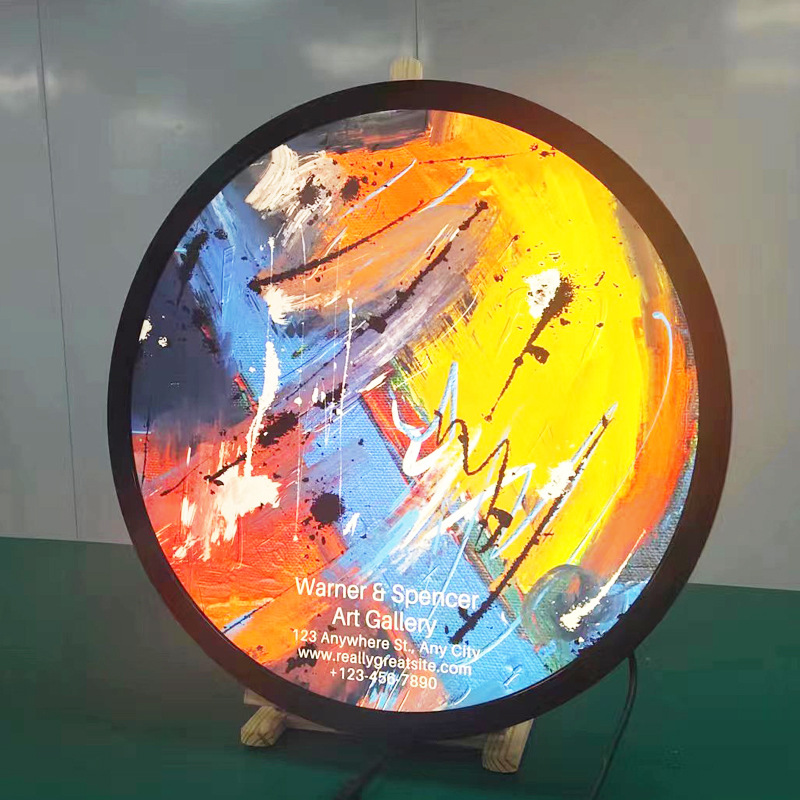

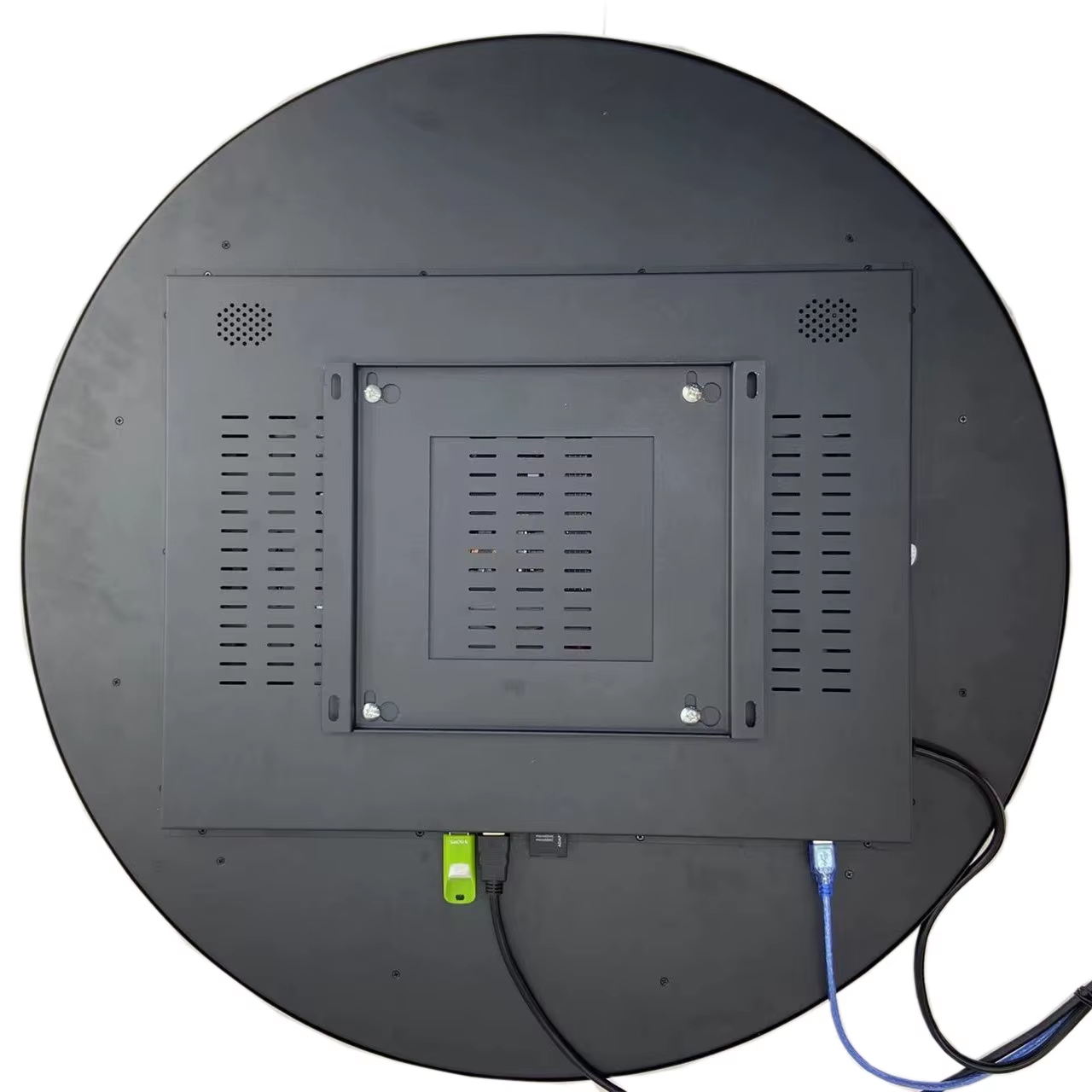

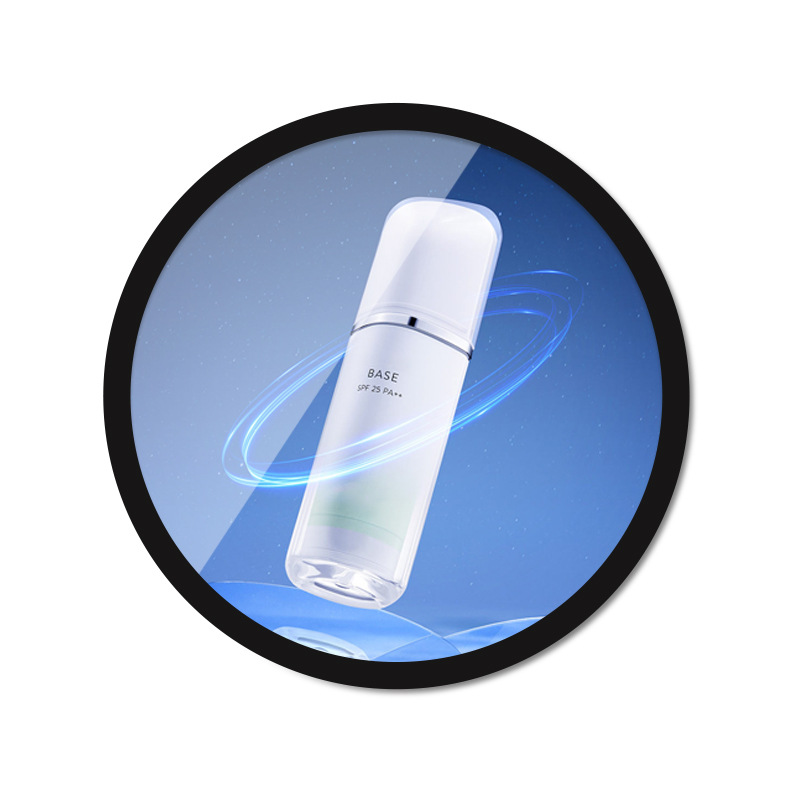

Product Image
