INTRODUCTION
The ITD industrial multi-touch screen panel mounted panel PC is fully-integrated‚ multi capacitive touch screen that combines high-performance ARM based Octa-Core RK3399 1.8GHz with Projected Capacitive Touch (PCT or PCAP) Technology in a sleek industrial-grade IP65/ NEMA 4/4x Ingress rating TFT-LCD flat panel with flat front surface design, embedded RFID reader and finger printer. The ITD ARM-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to ten-touch capabilities built into Android 7.1/8/9 and other popular programming languages. The ITD multi-touch panel mounted panel PC is designed for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.
FEATURES
▪ Easy-to-clean, true flat front surface without bezel
▪ Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA
▪ Web camera, RFID and thermal printer integrated
▪ Ten independent touch points (with Windows 7/8/10, Android, Linux operating systems)
▪ Eliminates dust and debris build-up at the edge and corners of the display
▪ Provides improved power efficiency and reduced consumption
▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel
▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments
▪ CE, FCC, RoHS Compliance
OPTIONS
• DC 24V, DC9-36V, AC100-240V
•High brightness, sunlight readable
•Resistive touch screen, tempered glass
•Speakers, NFC, Fingerprint, thermal printer, etc.
SPECIFICATION
| System | CPU | Intel® Celeron J1900 2.0GHz Processor |
| BIOS | AMI |
| Memory | Dual Channel, DDR3 1333/1600MHz Memory, Max.8G |
| Chipset | Intel Bay Trail SoC |
| Storage | 1 x SATA, 1 x mSATA, Default to 64GB SSD |
| Graphic Chipset | Intel HD Graphics (By CPU) |
| LAN | 1 x 10/100/1000Mbps Ethernet |
| Panel | Cell Type/Glass Surface | Color TFT LCD |
| Aspect Ratio/Size | 12.1''/4;3 |
| Active Area/Pixel Pitch | 246.0(W) x 184.5(H)mm/0.3075 × 0.3075mm |
| Native Resolution/Colors | 800 x 600 (1024 x 768 optional)/262K/16.2M |
| Response Brightness/Contrast | 300cd/㎡ /700:1 |
| Viewing Angle(Typical) | 80/80/60/80 |
| Light Source | LED backlight with 50000hours’lifetime |

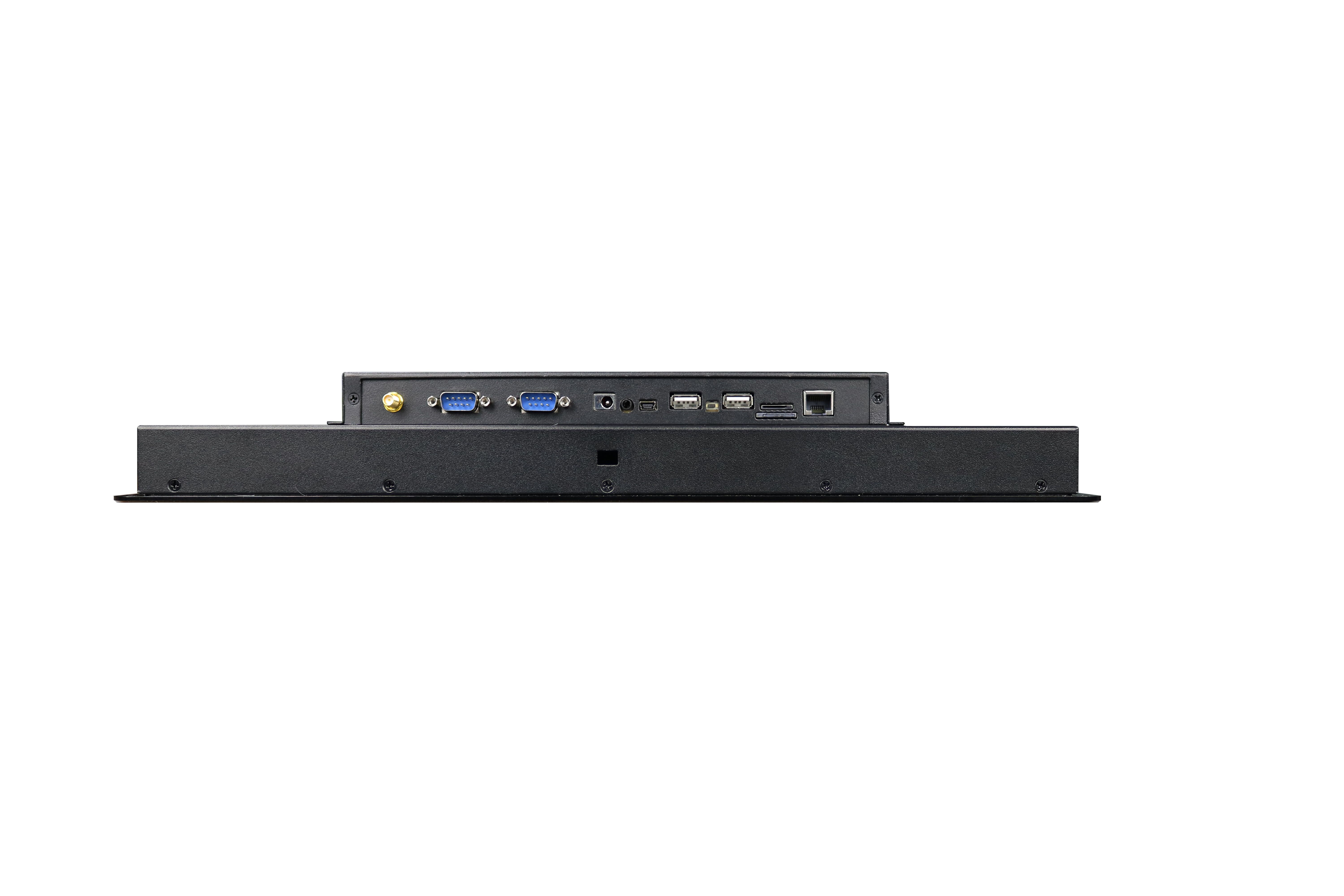

| Input / Output | Serial Ports | 2 x COM |
| USB Ports | 4 X USB |
| HDMI Port | 1x HDMI Output |
| VGA Port | 1 x VGA Output |
| Audio Card | with Realtek ALC662 Line-Out/MIC IN |
| Power | Input | DC 12V |
| Operation/Power Saving | 35W |
| Operating Temperature | -10℃~60℃ (-20~70℃ Optional) |
| Storage Temperature | -20℃~70℃ |
| Relative Humidity | 10%~90% |
Product Tags:
|
|

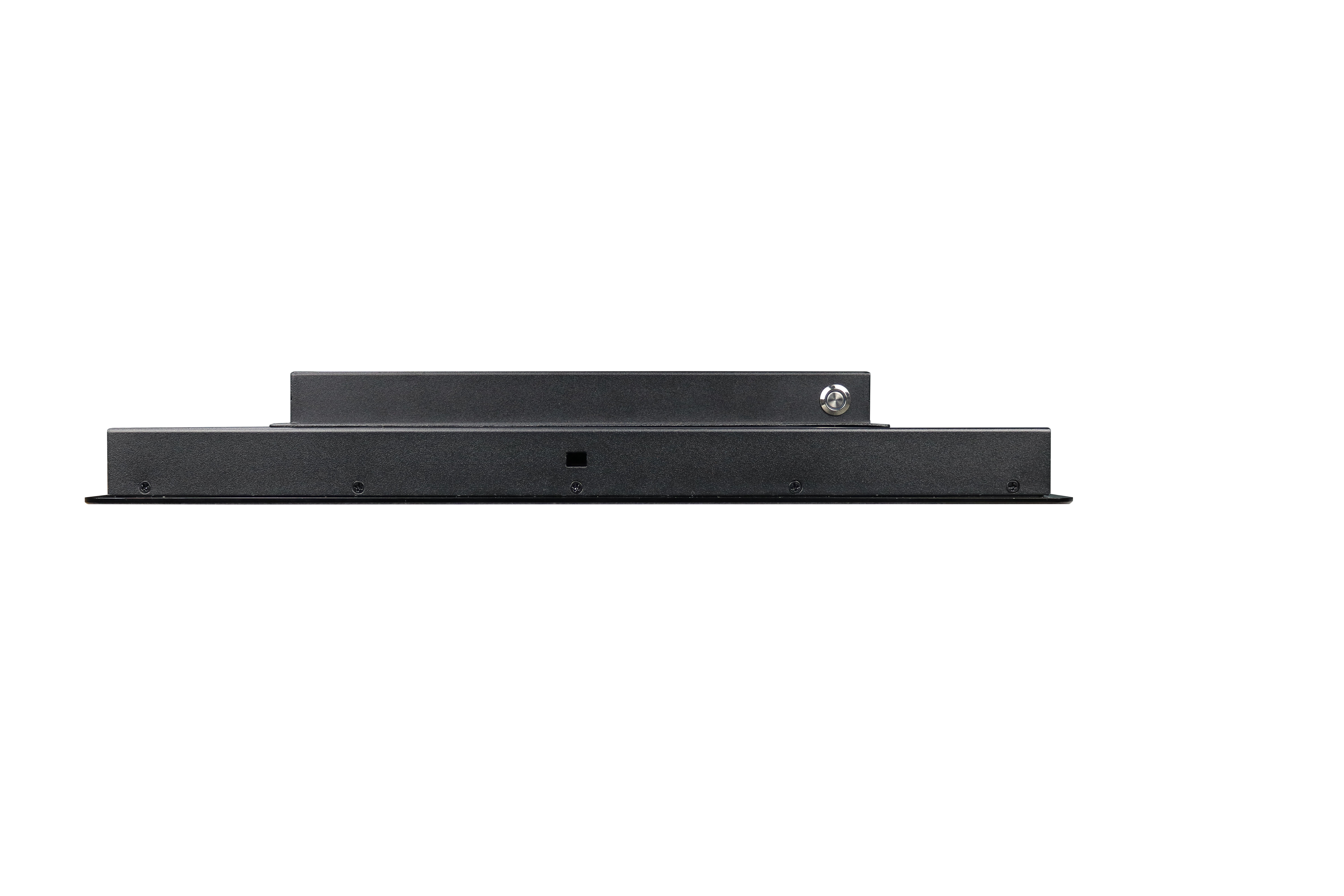

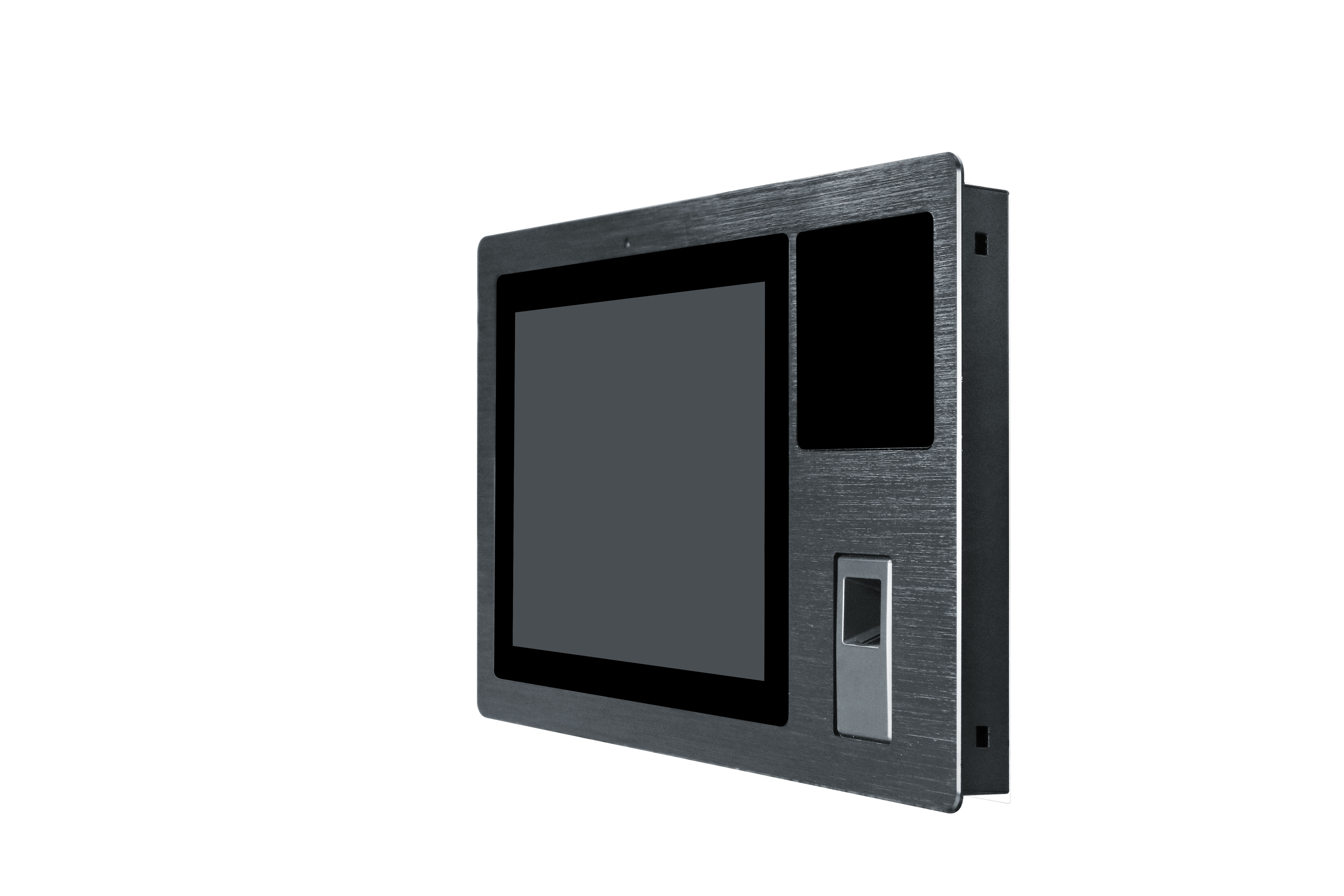

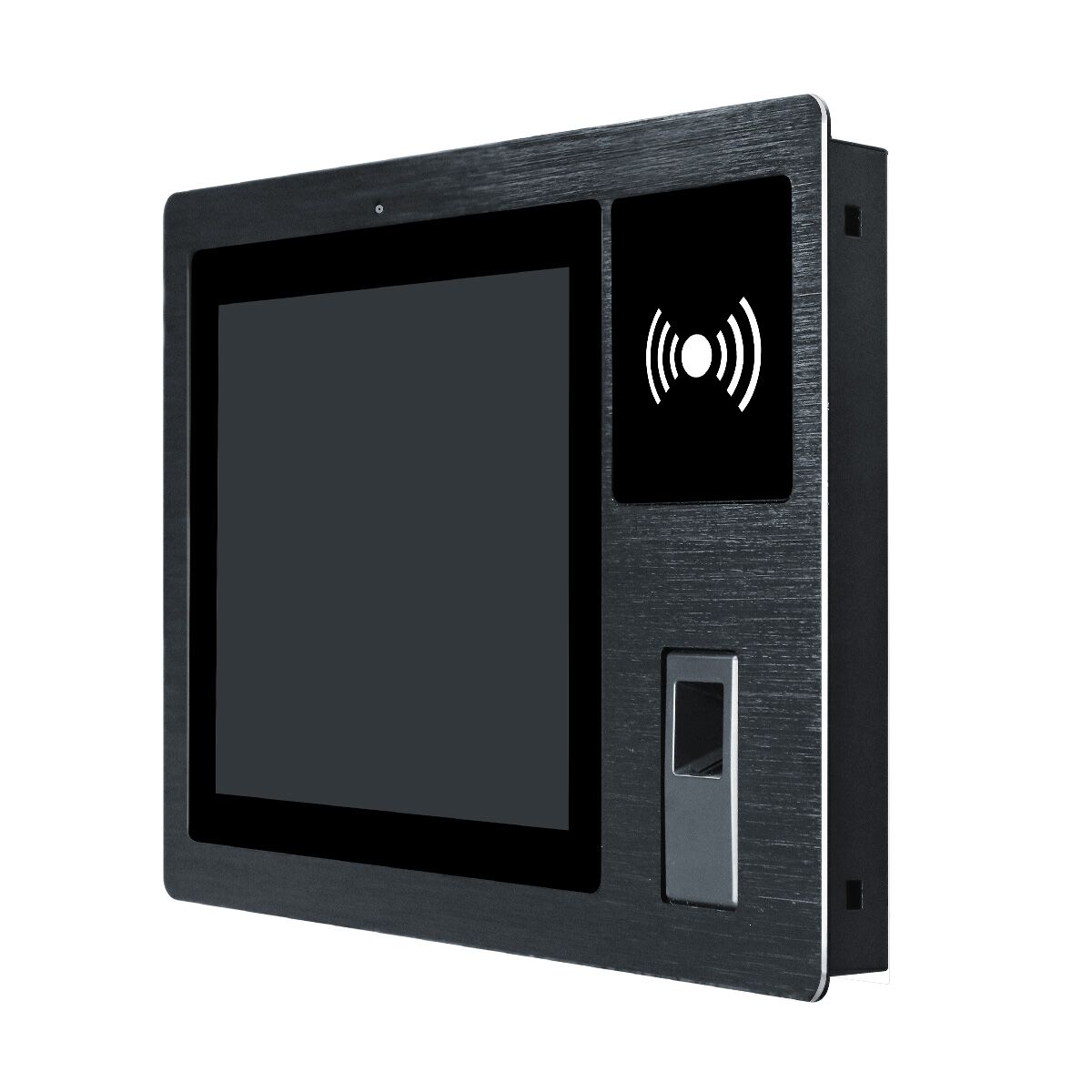

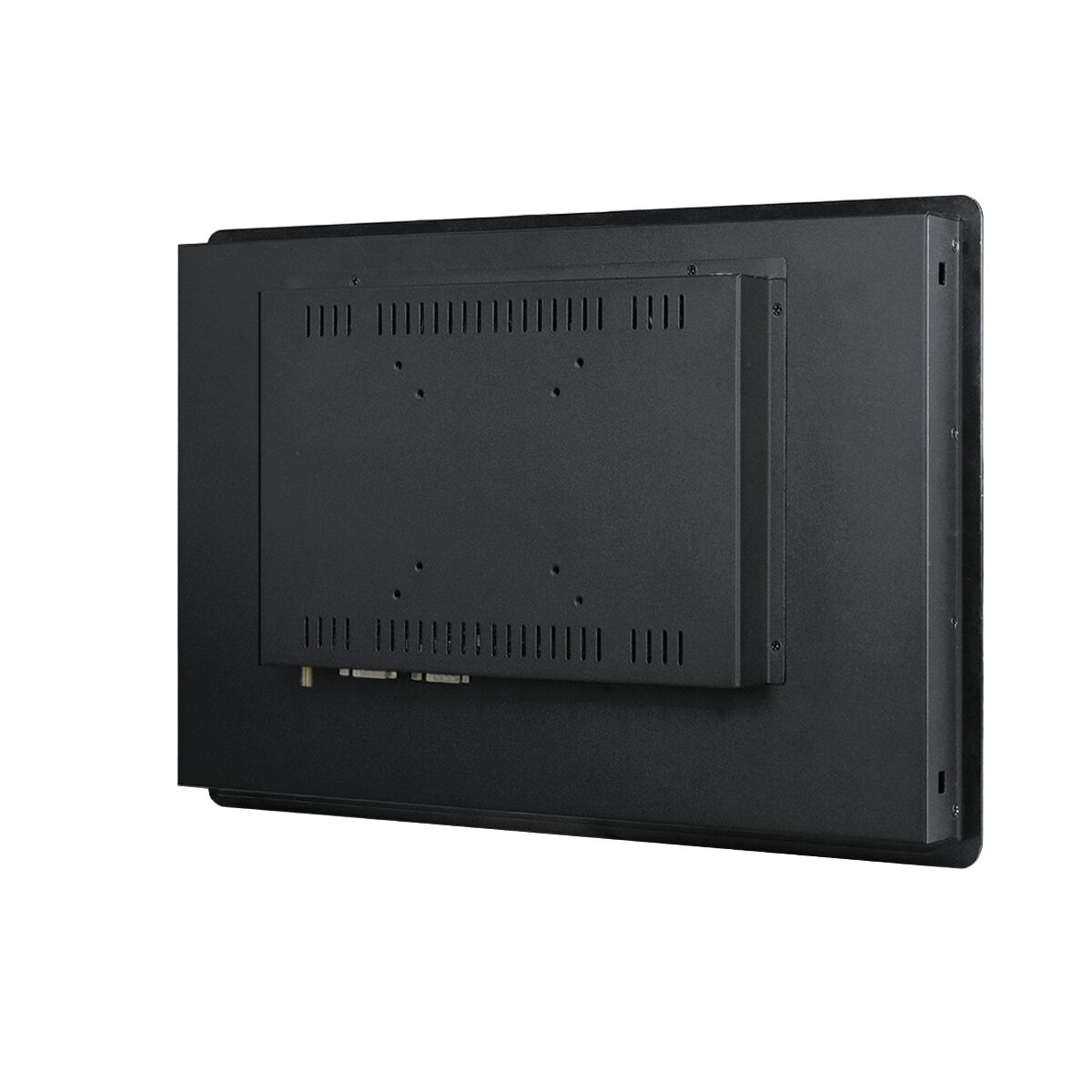

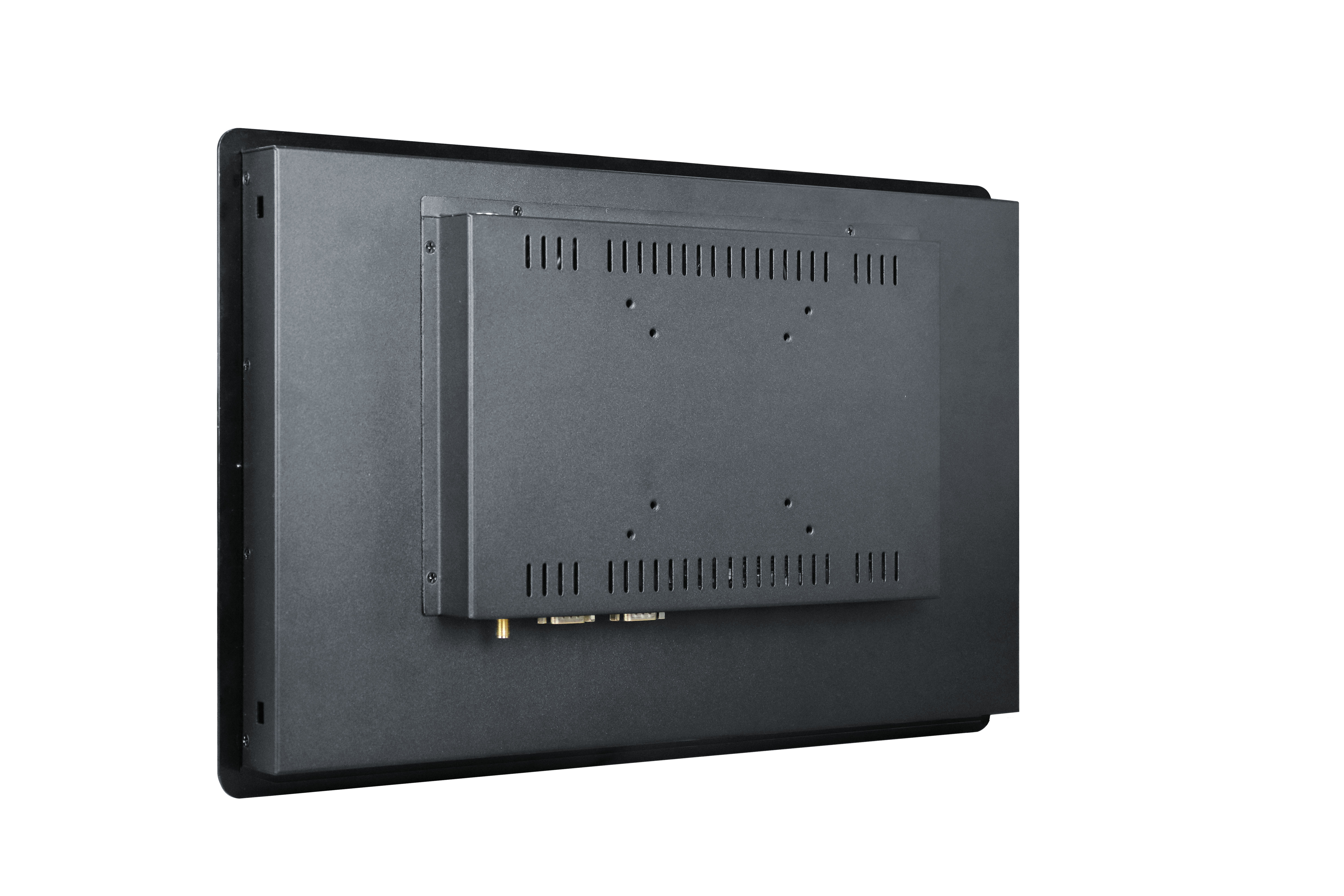

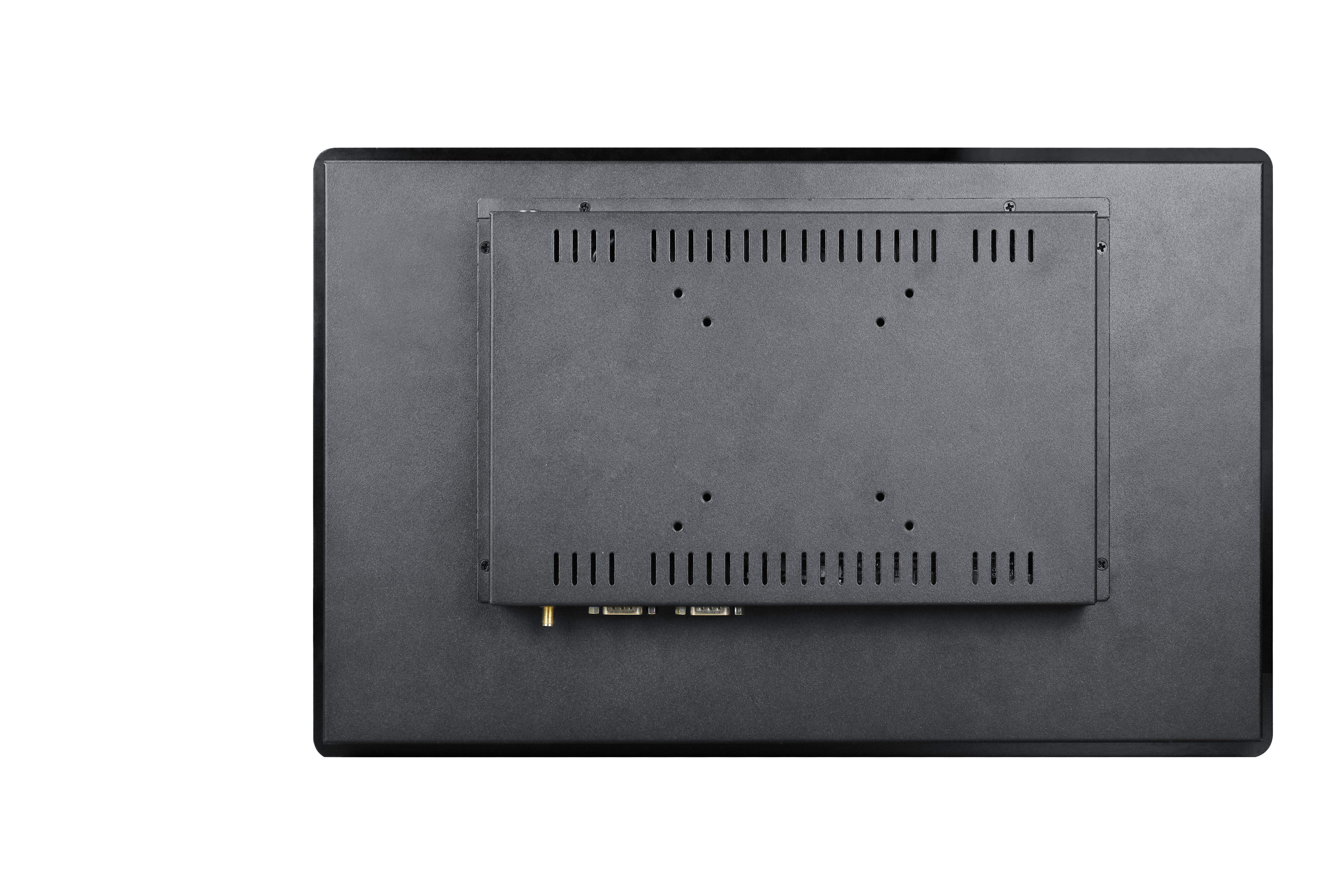

12.1'' PCAP Flat Bezel Touch LCD Panel PC All In One Fanless with RFID Reader and Finger Printer Images
|
