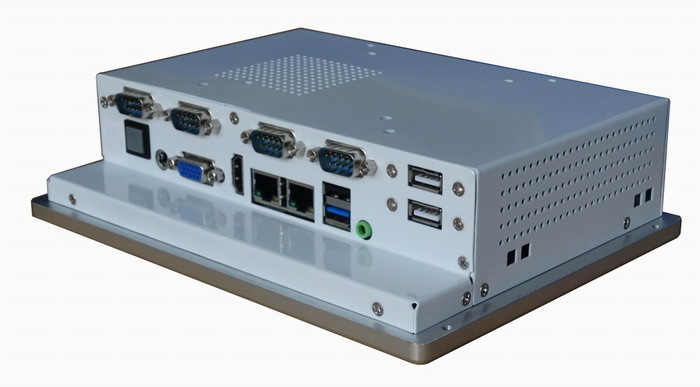

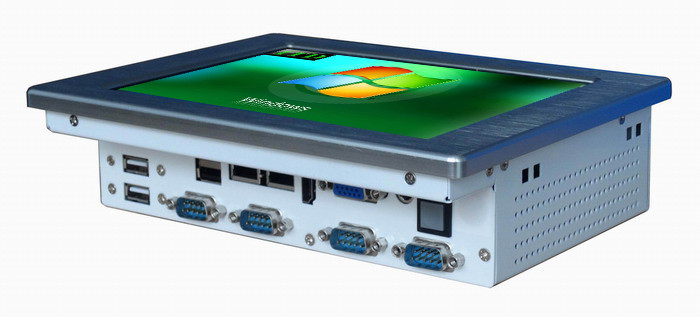

Product Description:
ITD 8” ITD08PPCT1CI* is panel mount touch PCs provide OEMs with vast selection of technologies and solutions simplifying PLC, HMI and SCADA applications. These PCs feature Intel® Core™ i3/i5/i7 processor, in industrial-grade LCD flat panels with resistive touch technology and NEMA 4 IP65 front bezel optional designed for HMI display and visualization solutions. These HMI thin clients are designed for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.
Key Features:Optional:
▪ Flexible, reliable, and ruggedized for open platform HMI/SCADA
▪ Energy-efficient and fan-less HMI Systems
▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel
▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments
▪ Flexible, easy configuration and integration
▪ CE, FCC, RoHS Compliance
Optional:
•Anti-Glare / Anti-Reflective tempered glass
•SDD 64GB,128GB up to 521GB
•HDD 500GB up to 1TB
•Touch optional: Resistive, IR, PCAP
•High brightness, sunlight readable
•DC24V, DC 9-36V
Specification:
| System | CPU | Intel® Core i3/i5/i7 Processor |
| Memory | 2GB, 4GB optional |
| BIOS | Award BIOS 4/8Mbit SPI Flash ROM |
| Chipset | Intel H81 |
| Memory | 1 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB |
| Graphic Chipset | CPU integrated graphics HD and support 1080p |
| Storage | 32GB SSD or 320GB HDD |
| LAN | 1 x 10/100/1000Mbps Ethernet |
| Input / Output | Serial Ports | 1 x COM |
| USB Ports | 4 X USB |
| HDMI Port | 1 X HDMI |
| VGA Port | 1 x VGA |
| Power Port | 1 x 12V DC Jack input |
| LPT Slot | N/A |
| Audio Card | Realtek ALG662 Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN |
| WIFI | Built-in, 802.11a/b/g/h (optional) |
| Panel | Cell Type/Glass Surface | TFT LCD |
| Aspect Ratio/Size | 8” |
| Active Area/Pixel Pitch | 214 (H) X 178(V)/0.264mm |
| Native Resolution/Colors | 1024 x 768 /16.2M |
| Brightness/Contrast | 250nits/700:1 |
| Viewing Angle(Typical) | 75/75/75/75 |
