12.1inch Stainless Rugged Panel PC Full IP67 IP69K Sealed Intel J4125 Windows 11 OS

Product Categories
Shenzhen ITD Display Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

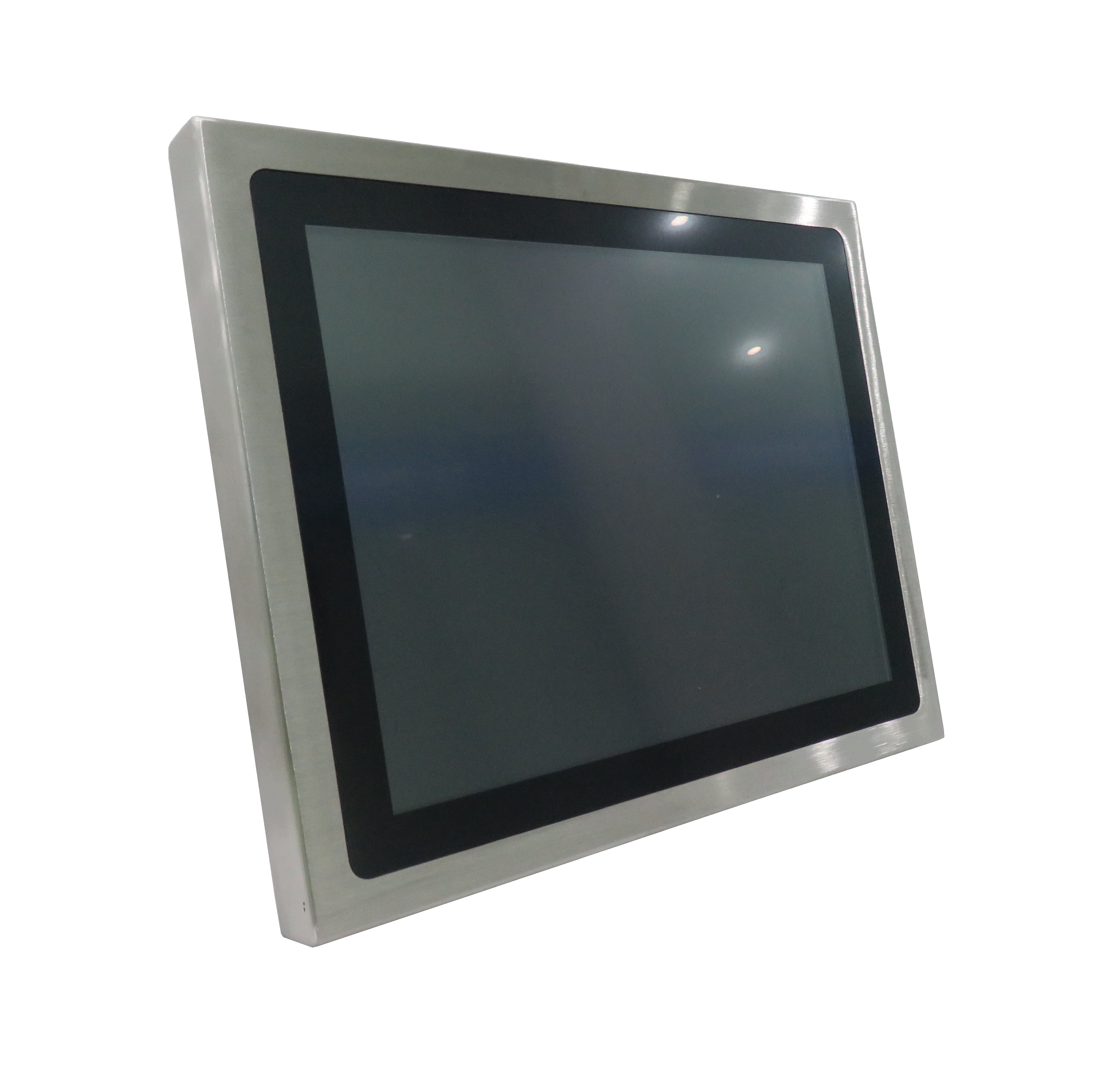

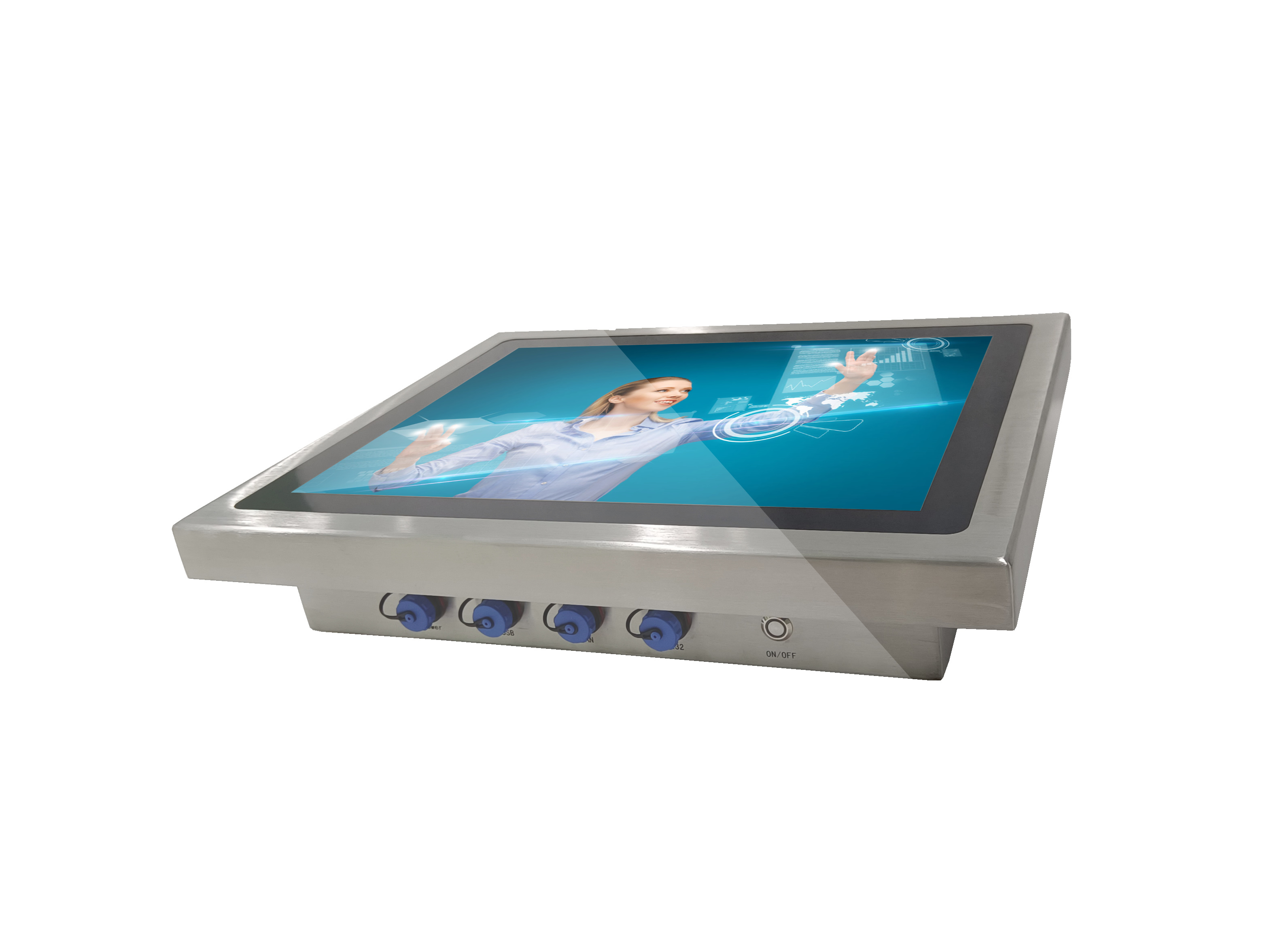

12.1inch Stainless Rugged Panel PC Full IP67 IP69K Sealed Intel J4125 Windows 11 OS

  • 1
  • 2

Brand Name : ITD/OEM

Model Number : ITD12PPCT1IPSI5-69K

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000 unit per month

Delivery Time : 1 month

Packaging Details : Foam,gift box,master carton,wooden case,pallet

CPU : Intel J4125

Material : Stainless steel housing 304 or 316L

Screen Diagonal : 12.1"

Physical Resolution : 1024×768

Waterproof I/O : 2×USB, 1×RS232, 1×RJ45, 1×DC 12V

Operating temp : -10 to 60℃, -20 to 70℃ optional

OS : Windows 11 OS

TPM 2.0 : TPM 2.0 supported

MTBF : 50000hous

Contact Now

Full IP67/69K Sealed 12.1" Stainless touch panel PC Intel J4125 Windows 11 OS

Built to withstand harsh working environments, ITD fully IP67/69K rated fanless panel PCs are enclosed in a SUS316 stainless steel housing. The front bezel and rear bezel are designed to be water and dustproof, making these PCs ideal for washdown applications, food processing, and pharmaceutical industries.

Panel Cell Type/Glass Surface TFT LCD
Aspect Ratio/Size 12.1” 4:3
Active Area 246.0(H) x 184.5(V)mm
Pixel Pitch 0.3075(H) x 0.3075(V)mm
Native Resolution 800 x 600(1024 x 768 optional)
Contrast 800:1
Colors 262K
Contrast Ratio 350nits
Response Time 10/15ms
Viewing Angle (Typical) 80/80/60/80
Light Source LED Backlight with 50000Hours’ Lifetime
System CPU Intel® Baytrail Celeron Quad Core J4125 Processor
BIOS AMI
Chipset Intel® Baytrail SOC CPU Integrated
Memory 2 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB
Graphic Chipset CPU integrated graphics HD and support 1080p
Storage SSD/HDD
I/O Serial Ports 1x COM (Optional)
USB Ports 2 x USB 2.0(Waterproof Connector and Cable)
Power Port 1 x 12V DC Jack (Waterproof Connector and Cable)
LAN 1 x 10/100/1000Mbps Ethernet (Waterproof Connector and Cable)
WIFI Built-in, 802.11a/b/g/h (optional)
Touch Screen Type Projected Capacitive Touch Screen with 10 independent touch points
Response Time ≤5ms
Transparency ≥85%
Lifetime ≥50,000,000 times/click
OS Support Windows CE/XP/7/8/10, Linux, Mac, Android
General Power Input DC 12V
Power Switch Optional
Mounting 100 x 100mm VESA Mount
Operation/Power Saving 33W
Operating Temperature -10~60℃, 20~70℃ opional
Storage Temperature -20~70℃
OS Support Windows 7/ Windows XP/ Windows 8/Window 10/ Linux

12.1inch Stainless Rugged Panel PC Full IP67 IP69K Sealed Intel J4125 Windows 11 OS

12.1inch Stainless Rugged Panel PC Full IP67 IP69K Sealed Intel J4125 Windows 11 OS
