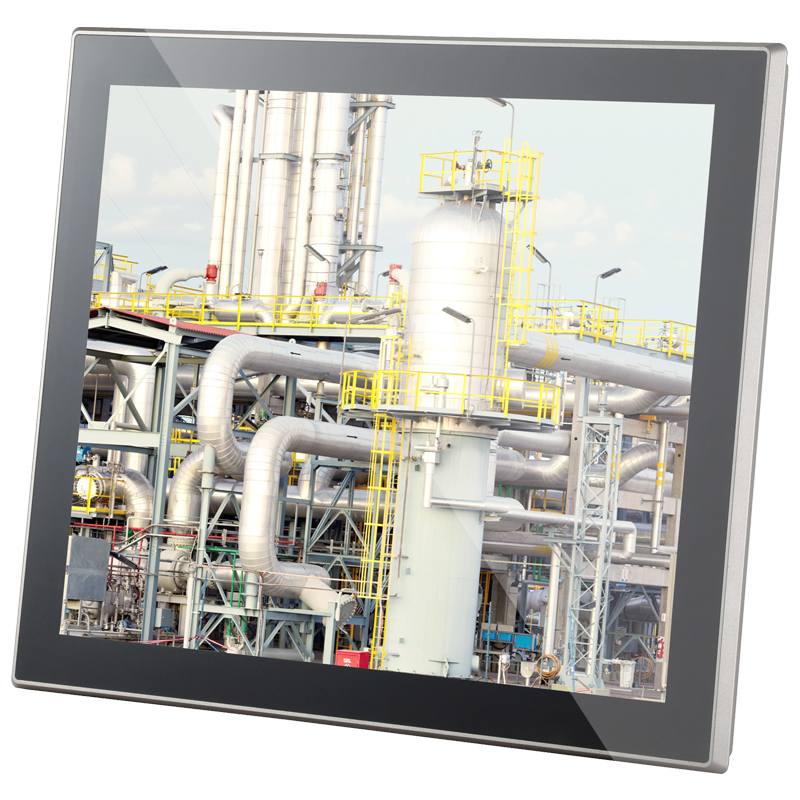

350nits 1280x1024 Multi Touch Pc Panel Computer Intel I7 8550U 32G RAM 220W

  • 1
  • 2

Brand Name : ITD/OEM

Model Number : ITDxxPPCT5B-xxxx

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 7-10 Business Days

Packaging Details : 1-5pcs/CTN, Safe, Firm, suitable for international shipping

Size : 8"~21.5"

Brightness : 350nits

Processor : Intel i3/i5/i7

touch panel : PCA/PCT

Mounting method : VESA

I/O : USB, COM, HDMI, Audio, LAN

Operating Temperature : -10~60℃

Storage Temperature : -20~70℃

Material : Steel Housing, aluminum frame

Warranty : 2 years

MTBF : 50000hours

Applications : kiosk, digital signage, automation, access control, information display

Contact Now

multi touch pc panel computer Intel i7 8550U 32G RAM optional

OPTIONALS

•Tempered glass

•WIFI

•Camera, card reader built-in

•VESA brackets, desktop stand, side mounting, floor stand

Model ITD101PPCT5KI* ITD13PPCT5KI* ITD15PPCT5KI* ITD156PPCT5KI* ITD17PPCT5KI*
Size 10.1” 13.3” 15” 15.6” 17”
Active Area 216.81(H)x 135.5(V) 293.42(W) × 164.97(H) 304.128(H)x 228.096(V) 246.0(H) x 184.5(V) 337.920(H) x 270.336(V)
Contrast 800:1 800:1 700:1 700:1 1000:1
Resolution 1920 x 1200 1920 x 1080 1024 x 768 1920 x 1080 1280 x 1024
Brightness 300nits 300nits 250nits 300nits 250nits
Viewing Angles 80/80/80/80 80/80/80/80 80/80/60/70 89/89/89/89 85/85/80/80
Backlight LED LED LED LED LED
Model ITD173PPCT5KI* ITD18PPCT5KI* ITD19PPCT5KI* ITD21PPCT5KI* ITD24PPCT5KI*
Size 17.3” 18.5” 19” 21.5” 24”
Active Area 381.888(H) x 214.812(V) 409.8(H) x 230.4(V) 376.32(H) x 301.06(V) 476.64(H) x 248.25(V) 531.36(H) x 298.89(V)
Contrast 400:1 1000:1 1000:1 1000:1 1000:1
Resolution 1920 x 1080 1366 x 768 1280x1024 1920 x 1080 1920 x 1080
Brightness 300nits 250nits 250nits 250nits 300nits
Viewing Angles 70/70/60/60 85/85/80/80 85/85/80/80 85/85/80/80 89/89/89/89
Backlight LED LED LED LED LED
Model ITD27PPCT5KI* ITD32PPCT5KI* ITD42PPCT5KI* ITD55PPCT5KI* ITD65PPCT5KI*
Size 27” 32” 42”/43” 55” 65”
Active Area 597.6(H)x 336.15(V) 698.4(H) x 392.85(V) 930.24(H) x 523.26(V) 1213.6(H) x 684.4(V) 1428.48(W) × 803.52(H)
Contrast 1000:1 1000:1 1200:1 3000:1 4000:1
Resolution 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080
Brightness 300nits 350nits 400nits 400nits 400nits
Viewing Angles 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89
Backlight LED LED LED LED LED
SPECIFICATION
System CPU Intel® Core i3/i5/i7 Processor
BIOS Award BIOS 4/8Mbit SPI Flash ROM
Chipset Intel Valley View SSA‐Cunit
Memory 1 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB
Graphic Chipset CPU integrated graphics HD and support 1080p
Storage 64GB SSD or 500GB HDD
LAN 1 x 10/100/1000Mbps Ethernet
Input / Output Serial Ports 1 x COM
USB Ports 4 x USB
VGA Port 1 x VGA
HDMI Port 1 x HDMI Port
Audio Card Line-In/Line-Out/Speaker MIC IN
Power Input Voltage External Power Supply DC 12V for 10.1”~24”; Internal Power Supply AC100~240V for 27”~65”
Operation/Power Saving 30-220W
Environment Considerations Operating Temperature 0~60℃
Storage Temperature -20~70℃
Relative Humidity 20%~90%
OS Support Windows 7/ Windows XP/ Windows 8/ Windows 10/Linux
Mounting Method VESA, Side mounting brackets(optional)
Order Information Zero-Bezel PCAP Touch Panel PC with Intel i3/ITD**PPCT5KI3
Zero-Bezel PCAP Touch Panel PC with Intel i5/ITD**PPCT5KI5
Zero-Bezel PCAP Touch Panel PC with Intel i7/ITD**PPCT5KI7
Zero-Bezel Panel PC with Tempered Glass/ITD**PPCG1KI*

350nits 1280x1024 Multi Touch Pc Panel Computer Intel I7 8550U 32G RAM 220W350nits 1280x1024 Multi Touch Pc Panel Computer Intel I7 8550U 32G RAM 220W350nits 1280x1024 Multi Touch Pc Panel Computer Intel I7 8550U 32G RAM 220W
