Sunlight Readable 1000nits 21.5" Pcap Touch Panel PC ITD

  • 1
  • 2

Brand Name : ITD/OEM

Model Number : ITD21PPCT5HBX**

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 7-10 Business Days

Packaging Details : 1-5pcs/CTN, Safe, Firm, suitable for international shipping

CPU : Intel J1900 i3/i5/i7 Processor

Storage Temperature : -20~70℃

Resolution : 1920 x 1080

Aspect ratio : 16:9

Brightness : 1000nits

viewing angles : 89/89/89/89

Power input : DC12V 2.0

active area : 476.64(H) x268.11(V)mm/0.24825× 0.24825mm

Contact Now

21.5" high bright sunlight readable pure flat panel mount pcap touch panel PC Windows Android​

The ITD industrial multi-touch screen panel mounted panel PC is fully-integrated‚ multi capacitive touch screen that combines high-performance ARM based or x86 based PC system with Projected Capacitive Touch (PCT or PCAP) Technology in a sleek industrial-grade IP65/ NEMA 4/4x Ingress rating high bright TFT-LCD flat panel with flat front surface design. The ITD Windows-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to ten-touch capabilities built into Windows 7/8 and other popular programming languages. The ITD multi-touch panel mounted panel PC is designed for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.


SPECIFICATION

Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 21.5”/16:9
Active Area/ Pixel Pitch 476.64(H) x268.11(V)mm/0.24825× 0.24825mm
Native Resolution/ Colors 1920 x 1080/16.7M
Brightness/ Contrast 1000cd/㎡(1500cd/㎡optional)/1000:1
Response Time/ Viewing Angle(Typical) 5ms/89/89/89/89
Light Source LED Backlight with 50000Hours’Lifetime

SYSTEM

Item Android Solution X86 Solution 1 X86 Solution 2
CPU ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) Intel® Celeron J1900 2.0GHz Intel® Core i3/i5/i7
Chipset RK3288 Intel Bay Trail SoC Intel SoC Chipset
Memory

2GB; 4GB Optional

Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB

 2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage

8GB: 16GB/32GB/64GB Optional

 1 x SATA, 1 x mSATA, Default to 64GB SSD 1 x SATA, 1 x mSATA, Default to 64GB SSD
Graphics Supports max. 4K resolution Intel HD Graphics (By CPU) Intel HD Graphics (By CPU)
I/O 1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 2 × COM; 1 × TF Card Slot Support 8~128GB

1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; COM port(optional); 1 x Realtek ALC662

Line-Out /MIC IN

1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; 2 x COM max. 6; 1 x Realtek ALC662

Line-Out /MIC IN
LAN 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet
OS Android 6.0 (Android 7.0 optional) Windows 7/8/10, Linux Windows 7/8/10, Linux

GENERAL

Power Input Voltage DC 12V 2.0
Operation/Power Saving 40~65W
Environment Considerations Operating Temperature -10~60℃
Storage Temperature -20~70℃
Relative Humidity 10%~90%
Order Information 21.5” Flat Bezel Panel PC 1000nits with PCAP Touch RK32880/ITD21PPCT5HBXE2
21.5” Flat Bezel Panel PC 1000nits with Resistive Touch RK3288/ITD21PPCT1HBXE2
21.5” Flat Bezel Panel PC 1000nits with Tempered Glass RK3288/ITD21PPCG1HBXE2
21.5” Flat Bezel Panel PC 1000nits with PCAP Touch J1900/ITD21PPCT5HBXJ2
21.5” Flat Bezel Panel PC 1000nits with Resistive Touch J1900/ITD21PPCT1HBXJ2
21.5” Flat Bezel Panel PC 1000nits with Tempered Glass J1900/ITD21PPCG1HBXJ2
21.5” Flat Bezel Panel PC 1000nits with PCAP Touch i3/ITD21PPCT5HBXI3
21.5” Flat Bezel Panel PC 1000nits with Resistive Touch i3/ITD21PPCT1HBXI3
21.5” Flat Bezel Panel PC 1000nits with Tempered Glass i3/ITD21PPCG1HBXI3
21.5” Flat Bezel Panel PC 1000nits with PCAP Touch i5/ITD21PPCT5HBXI5
21.5” Flat Bezel Panel PC 1000nits with Resistive Touch i5/ITD21PPCT1HBXI5
21.5” Flat Bezel Panel PC 1000nits with Tempered Glass i5/ITD21PPCG1HBXI5

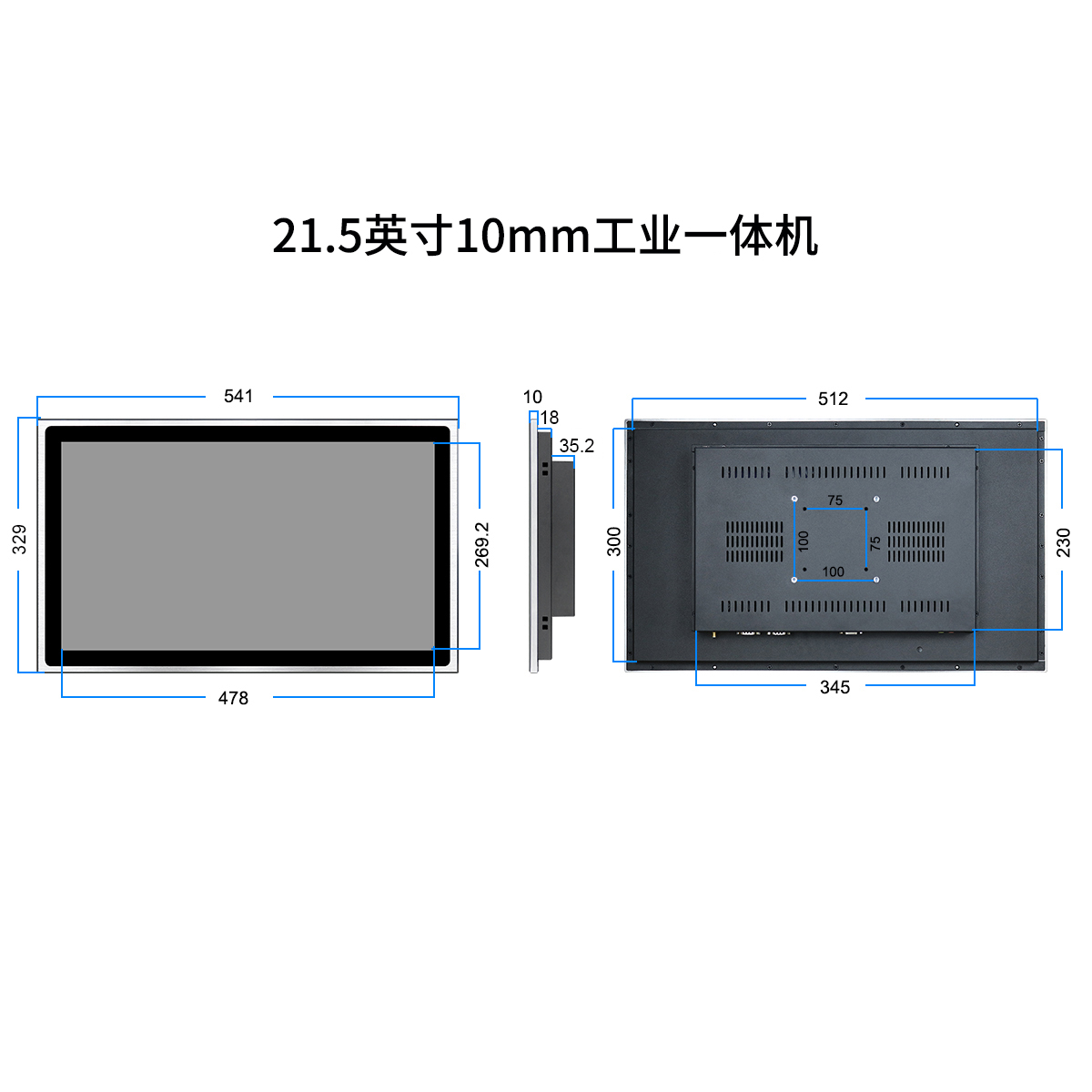

Product Image

Sunlight Readable 1000nits 21.5" Pcap Touch Panel PC ITD

Sunlight Readable 1000nits 21.5" Pcap Touch Panel PC ITD

Sunlight Readable 1000nits 21.5" Pcap Touch Panel PC ITD

Sunlight Readable 1000nits 21.5" Pcap Touch Panel PC ITD
