Compact Structure Rugged All In One PC SS Aluminum Alloy Enclosure PCAP Touch

Name: Compact Structure Rugged All In One PC SS Aluminum Alloy Enclosure PCAP Touch
Brand: ITD/OEM
Price: 1 USD

China Compact Structure Rugged All In One PC SS Aluminum Alloy Enclosure PCAP Touch wholesale

Brand Name : ITD/OEM

Model Number : ITD10MT5HBIPS1-ITD43MT5HBIPS1

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 20 Business Days

Packaging Details : 1-5pcs/CTN, Safe, Firm

Native resolution : 1920x1080

Brightness : 250 to 1500 nits optional

Viewing Angle : 89/89/89/89

Input Signal : HDMI (Waterproof Connector)

Power Input : DC 12V (Waterproof Connector) DC24V, DC9-36V, AC100-240V input optional

Storage Temperature : -20~60℃

Operating Temperature : 0~50℃

Contact Now

full waterproof IP65 IP66 IP67 rugged industrial panel PC with Stainless Steel aluminum alloy enclosure pcap touch

The ITD Full IP65/IP66 panel PCs series is an Intel® Celeron™ Quad Core Processor J1900 2.0 GHz based that meets all hygiene regulation standards in the food, beverage, chemical, pharmaceutical, consumer packaged goods, and biotechnology process manufacturing. This waterproof PCs series has a wide range of sizes option, with complete stainless-steel chassis and anti-corrosive. This HMI system features fan-less design and IP65/NEMA 4X sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration while meeting required EMI/RFI resistance compliance.

Model	ITD10PPCG1IPSJ1	ITD12PPCG1IPSJ1	ITD15PPCG1IPSJ1	ITD17PPCG1IPSJ1	ITD19PPCG1IPSJ1	ITD21PPCG1IPSJ1
Size	10.4” (4:3)	12.1”(4:3)	15” (4:3)	17” (4:3)	19” (4:3)	21.5” (16:9)
Active Area	211.2(W) x 158.4(H)	246.0(H) x 184.5(V)	211.2(W) x 158.4(H)	337.92(H) x 270.33(V)	376.32(H) x 301.06(V)	476.64(H)x248.25(V)
Contrast Ratio	500:1	500:1	700:1	1000:1	1000:1	1000:1
Resolution	800x600 or 1024x768	800x600 or 1024x768	1024x 768	1280 x 1024	1280 x 1024	1920 x 1080
Brightness	300nits	300nits	300nits	250nits	250nits	250nits
Viewing Angles	70/70/60/70	70/70/60/60	80/80/60/80	85/85/80/80	85/85/80/80	85/85/80/80
Backlight	LED	LED	LED	LED	LED	LED

SPECIFICATION

System	CPU	Intel® Baytrail Celeron Quad Core J1900 2.0GHz Processor
	BIOS	AMI
	Chipset	Intel® Baytrail SOC CPU Integrated
	Memory	1 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB
	Graphic Chipset	CPU integrated graphics HD and support 1080p
	Storage	1 x SATA, 1 x mSATA, Default to 64GB SSD
I/O	Serial Ports	1x COM (Optional)
	USB Ports	2 x USB 2.0(Waterproof Connector and Cable)
	Power Port	1 x 12V DC Jack (Waterproof Connector and Cable); DC9-36V input optional
	LAN	1 x 10/100/1000Mbps Ethernet (Waterproof Connector and Cable)
	WIFI	Built-in, 802.11a/b/g/h (optional)
Touch Screen	Type	Projected Capacitive Touch Screen with 10 independent touch points
	Response Time	≤5ms
	Interface	USB or COM, default to USB
	Transparency	≥85%
	Lifetime	≥50,000,000 times/click
	OS Support	Windows CE/XP/7/8/10, Linux, Mac, Android
General	Power Input	DC 12V, DC 9-36, AC100-240V input optional
	Power Switch	Included
	Mounting Option	75 x 75/100 x 100mm VESA Mount Panel Mounting optional
Operation/Power Saving	TBA
Operating Temperature	-10~60℃(-20~70℃ optional)
Storage Temperature	-20~70℃
OS Support	Windows 7/Windows 10/ Linux
Order Information	Stainless Steel Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD**PPCG1IPSJ1
	Stainless Steel Full IP65/IP66 Panel PC J1900 with Resistive Touch: ITD**PPCT1IPSJ1
	Stainless Steel Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD**PPCT5IPSJ1
	Stainless Steel Full IP67 Panel PC J1900 with Tempered Glass: ITD**PPCG1IPSJ2
	Stainless Steel Full IP67 Panel PC J1900 with Resistive Touch: ITD**PPCT1IPSJ2
	Stainless Steel Full IP67 Panel PC J1900 with PCAP Touch: ITD**PPCT5IPSJ2
	Aluminum Alloy Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD**PPCG1IPAJ1
	Aluminum Alloy Full IP65/IP66 Panel PC J1900 with Resistive Touch: ITD**PPCT1IPAJ1
	Aluminum Alloy Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD**PPCT5IPAJ1
	Steel Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD**PPCG1IPXJ1
	Steel Full IP65/IP66 Panel PC J1900 with Resistive Touch: ITD**PPCT1IPXJ1
	Steel Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD**PPCT5IPXJ1

BENEFITES

Exceptional quality and highly engineered industrial heavy duty monitors
Optional touchscreens like resistive and PCAP
Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65 ratings from all directions
Solid steel and stainless steel or aluminum alloy enclosures
IP65 sealed, Full IP65 I/O connectors protect from any particles, water, and corrosive agents
Accuracy in high-use applications
Long lasting product cycle for continuity thru all phases of project

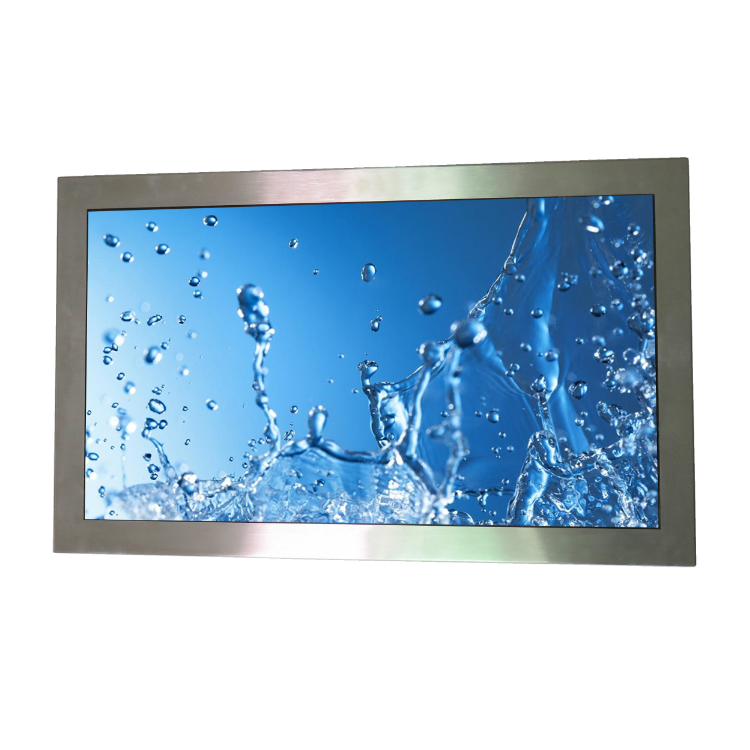

Product Display

Compact Structure Rugged All In One PC SS Aluminum Alloy Enclosure PCAP Touch

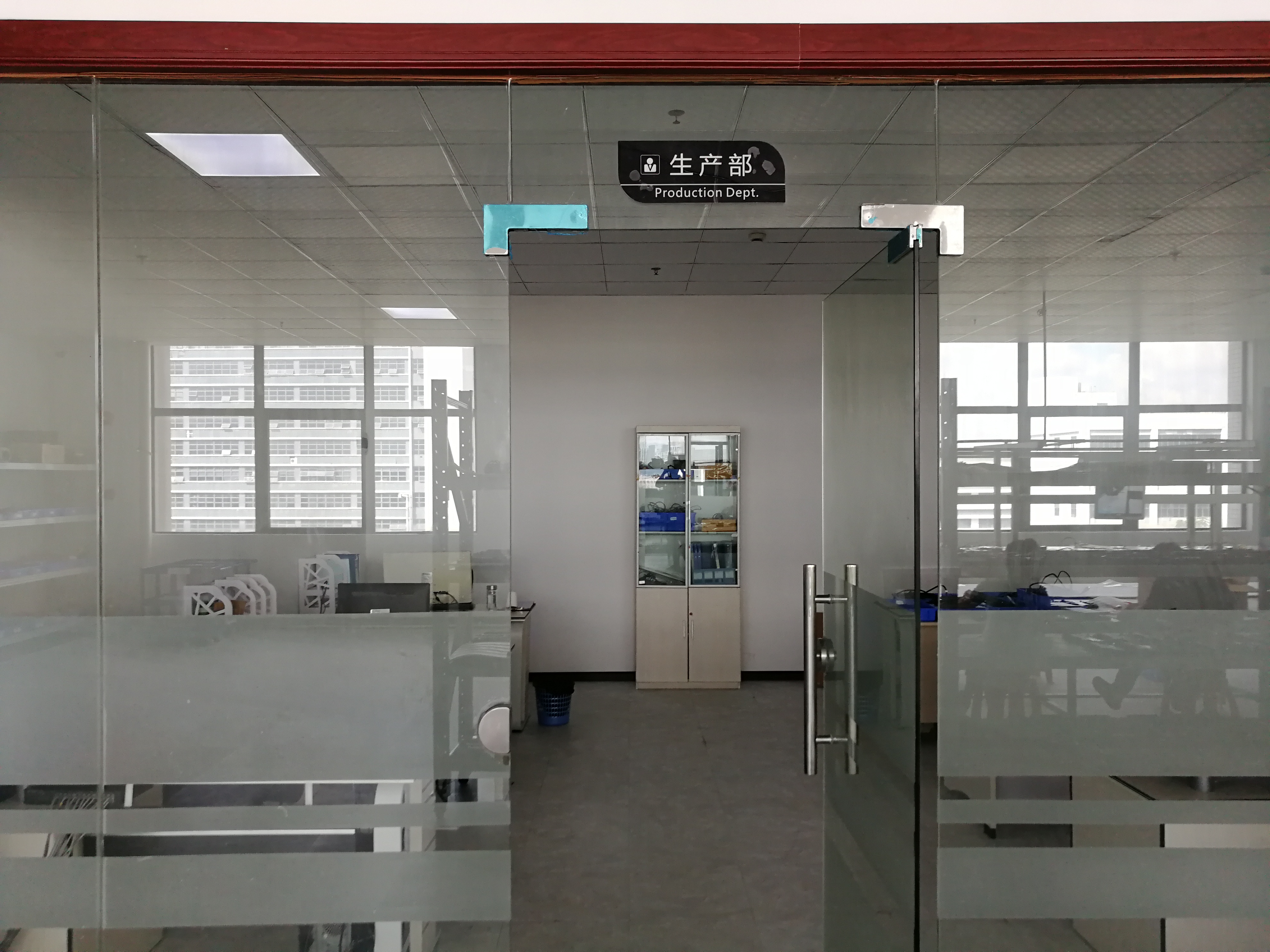

Our factory

Compact Structure Rugged All In One PC SS Aluminum Alloy Enclosure PCAP Touch
