11.6" Touch Monitor PC Aluminum Alloy Intel i5 PCAP Flat Bezel Panel Mount

Name: 116quot Touch Monitor PC Aluminum Alloy Intel i5 PCAP Flat Bezel Panel Mount
Brand: ITD/OEM
Price: 1 USD

China 11.6" Touch Monitor PC Aluminum Alloy Intel i5 PCAP Flat Bezel Panel Mount wholesale

Brand Name : ITD/OEM

Model Number : ITD11PPCT5XI5A

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1PCS

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000 unit per month

Delivery Time : 15-20 work days

Packaging Details : Foam,gift box,master carton,wooden case,pallet

CPU : Intel® Core™ Processor i5-7200U

Size : 11.6"

Active Area : 256.125(H) X 144(V)mm

Native Resolution : 1366 x 768

Brightness : 400cd/㎡

Viewing Angle : 85/85/85/85

Input Voltage : 9-36V

Price : TBA

Contact Now

11.6" marine display aluminum alloy Intel i5 PCAP Flat Bezel panel mount touch screen PC

Specs:

Panel	Cell Type/Glass Surface	TFT LCD
	Size	11.6”
	Aspect Ratio	16:9
	Active Area	256.125(H) x 144(V)mm
	Pixel Pitch	0.1875 x 0.1875mm
	Native Resolution	1366 x 768
	Colors	262K
	Brightness	400cd/㎡
	Contrast	800:1
	Response Time	25ms
	Viewing Angle(Typical)	85/85/85/85
	Light Source	LED Backlight with 50000Hours’Lifetime

SPECIFICATION

System	CPU	Intel® Core Quad Core i5-7200U 2.5GHz Fanless
	BIOS	AMI
	Chipset	Intel H110
	Memory	2 x SO-DIMM, DDR4 2133/2400MHz Memory, 8GB, Max.32GB
	Graphic Chipset	Intel HD Graphics 620
	Storage	2 x SATA3.0 1 x mSATA (SATA SSD)
	LAN	2 x 10/100/1000Mbps Ethernet
Input / Output	Serial Ports	1 x COM
	USB Ports	4 X USB
	VGA Port	1 x VGA
	HDMI Port	1x HDMI Port
	Audio Card	with Realtek ALC662 Line-Out /MIC IN
Power	Input Voltage	DC 9-36V
Power	Operation/Power Saving	30W
Environment Considerations	Operating Temperature	-10~60℃
	Storage Temperature	-20~70℃
	Relative Humidity	10%~90% (Non Condensing)
	Anti-Vibration	5Hz-500Hz / 1Grms/3 Axis
	Anti-Shock	15G, 15ms Duration

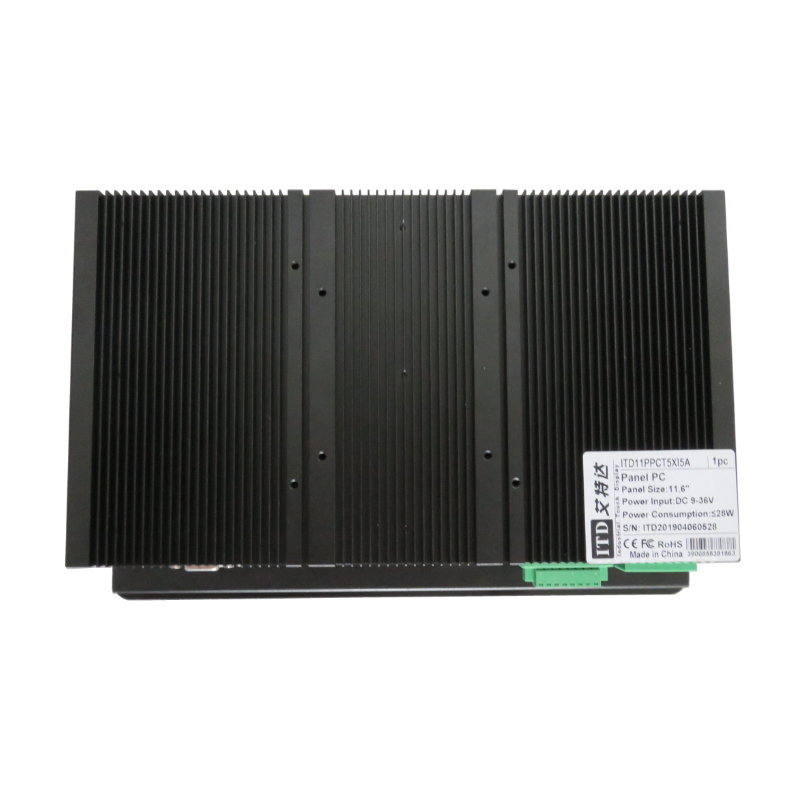

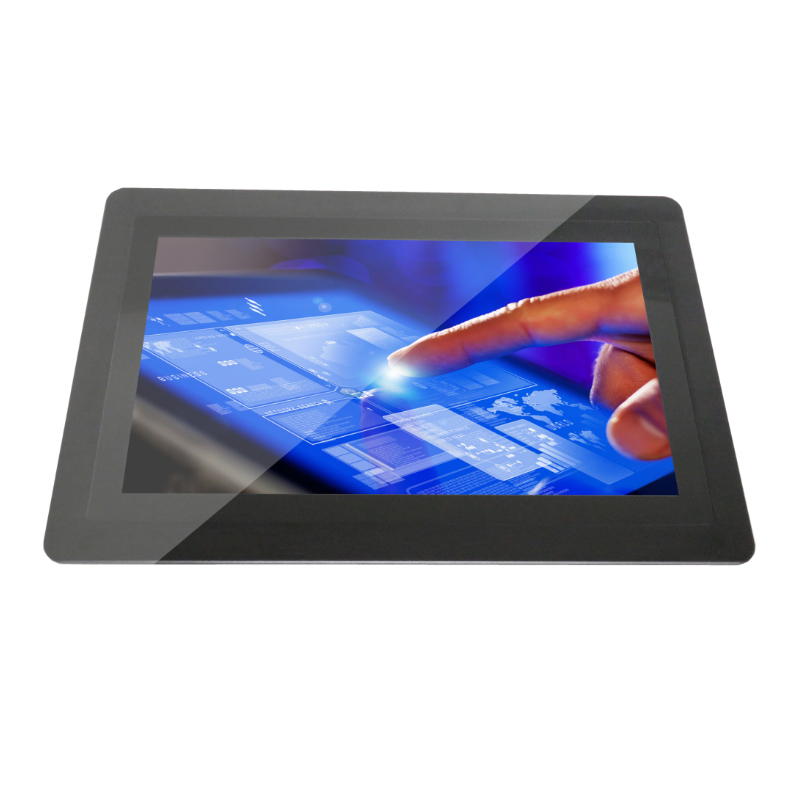

Image:

11.6" Touch Monitor PC Aluminum Alloy Intel i5 PCAP Flat Bezel Panel Mount

FEATURES

▪ Freescale ARM Cortex-A9 i.MX 6DualLite processor with Android 5.1 OS

▪ LTE/HSPA+, Wi-Fi, Bluetooth, and GPS connectivity

▪ Energy-efficient and fan-less HMI Systems

▪ Robust design with aluminum bezel NEMA 4/ IP65 front panel

▪ CAN bus interface with raw CAN, J1939, and OBD-II/ISO 15765 support

11.6" Touch Monitor PC Aluminum Alloy Intel i5 PCAP Flat Bezel Panel Mount
