55” Zero-Bezel PCAP Touch Panel PC multi 10 touch points with true flat surface

Name: 55 ZeroBezel PCAP Touch Panel PC multi 10 touch points with true flat surface
Brand: ITD/OEM
Price: 1 USD

China 55” Zero-Bezel PCAP Touch Panel PC multi 10 touch points with true flat surface wholesale

Brand Name : ITD/OEM

Model Number : ITD55PPCT5KJ

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1PCS

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000 units per month

Packaging Details : Foam,gift box,master carton,pallet

Screen Diagonal : 55"

Display active screen size : 1213.6(H) ×684.4(V) mm

Physical Resolution : 1920x1080

Brightness : 400 nits

View Angels : 89/89/89/89

Touch Technology : Projected Capacitive Touch

Touch Drivers : Windows, Linux, Android, Mac, Raspberry Pi

Touch Life : 50,000,000 Times/Click

Price : TBA

Contact Now

55” Zero-Bezel PCAP Touch Panel PC multi 10 touch points with true flat surface

TD PCAP Multi-touch Panel HMIs offer users a high degree of flexibility for interfaces and expansions, high-speed USB 3.0, high data transfer rate, redundancy and teaming capable Gigabit Ethernet, highly reliable and flexible RS232/485 serial communication interfaces; highly flexible graphics and video interfaces with HDMI and audio ports.

FEATURES

- Cost-effective control and monitoring for simple HMI apps
- HMIs offer machine-oriented operation and monitoring
- Rugged, compact, fanless, and multiple interface options
- High performance processor, graphics, memory and power
- IP65 degree of protection, resistance against corrosion
- High availability communication and storage
- Highly reliable touchscreens and long lasting displays
- High temperature, vibration, shock, and EMC resistance
- CE, FCC, RoHS Compliance

Spefifications

Zero-Bezel PCAP Touch Panel PC
Model Name		ITD55PPCG1K**
IP Rating		IP65 Front Panel
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel® Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel® HD Graphics, Support 1080p		Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch/cm)		55”
Display Active Screen Size (mm)		1213.6(H) ×684.4(V)
Aspect Ratio		16:9
Physical Resolution		1920×1080
Maximum Resolution Supported		1920×1080
Colors		16.7M
Brightness (cd/m²)		400nits
Contrast Ratio		3000:1
View Angels		89/89/89/89
Backlight/Backlight Lifetime		LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Technology		Projected Capacitive Touch
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Touch Life		50,000,000 Times/Click
Surface Hardness		7H
OS Support		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Power
Power Indicator		Green LED
Power Input		AC100-240V
Power Consumption		170W
Order Information
55” Zero-Bezel Touch Panel PC with PCAP Touch, J1900		ITD55PPCT5KJ1
55” Zero-Bezel Touch Panel PC with Tempered Glass, J1900 55” Zero-Bezel Touch Panel PC with PCAP Touch, i3		ITD55PPCG1KJ1 ITD55PPCT5KI3
55” Zero-Bezel Touch Panel PC with Tempered Glass, i3 55” Zero-Bezel Touch Panel PC with PCAP Touch, i5 55” Zero-Bezel Touch Panel PC with Tempered Glass, i5 55” Zero-Bezel Touch Panel PC with PCAP Touch, i7		ITD55PPCG1KI3 ITD55PPCT5KI5 ITD55PPCG1KI5 ITD55PPCT5KI7
55” Zero-Bezel Touch Panel PC with Tempered Glass, i7		ITD55PPCG1KI7

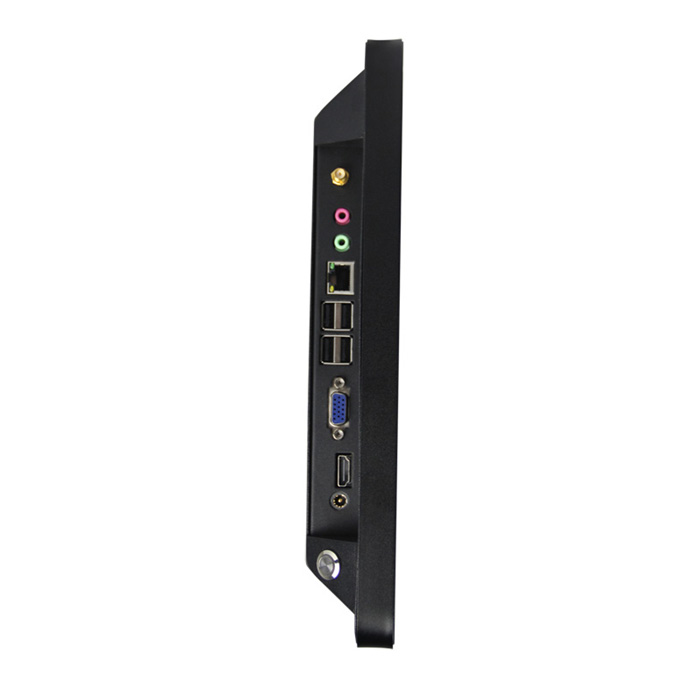

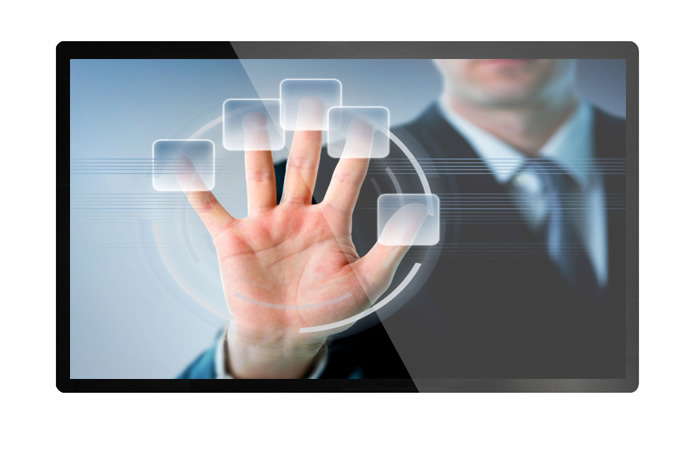

Product Display:

55” Zero-Bezel PCAP Touch Panel PC multi 10 touch points with true flat surface

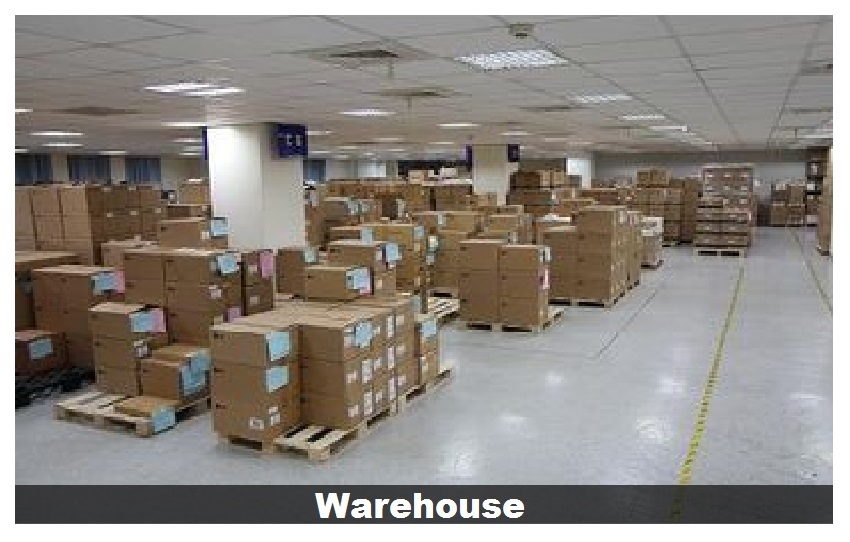

Factory:
